Tuam Tshoj Everlasting Parts Co., Ltd. yog ib qho ntawm cov kws tshaj lij thiab cov neeg muag khoom ntawm 40c6996 roj lim hauv Suav teb. Txais tos rau cov lag luam wholesale thawj thiab tiag 40c6996 roj lim los ntawm peb lub hoobkas. Tiv tauj peb rau cov khoom pheej yig thiab kev pabcuam OEM.

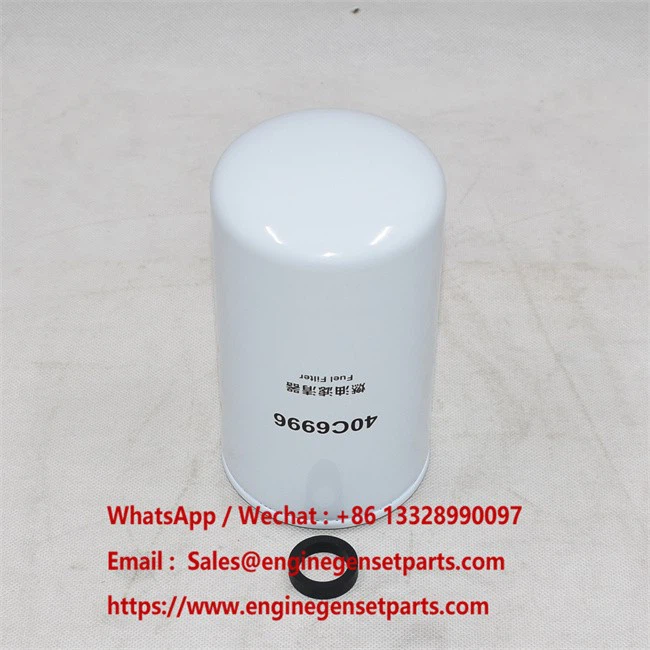

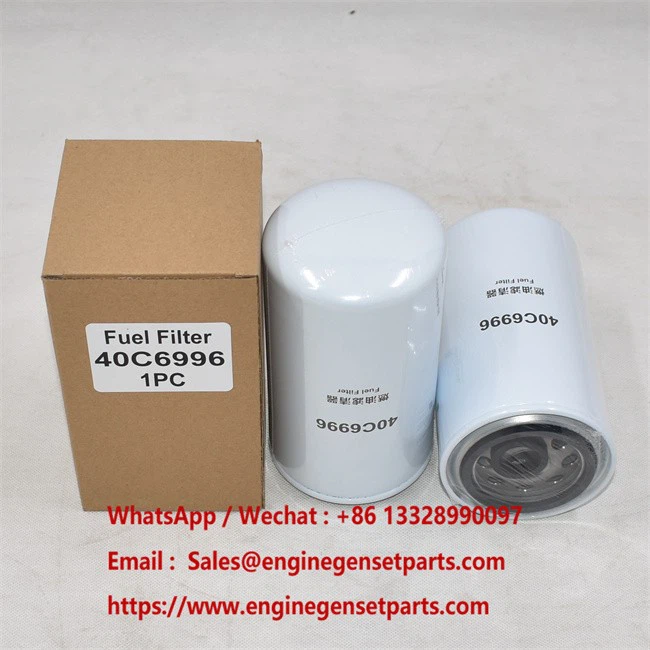

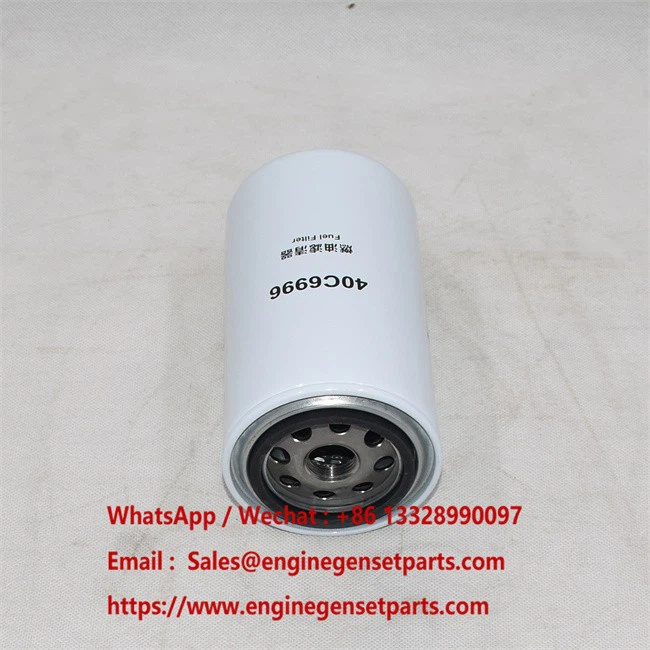

40C6996 High-Efficiency Fuel Lim rau Cummins, Komatsu, thiab SANY Equipment
6.5 Micron Secondary Lim rau HPCR Systems
Siab -kev ua tau zoo ntawm cellulose media: 6.50 micron (c) @ 98.7% efficiency.
Hloov rau Donaldson P550774, Fleetguard FF5488, thiab Cummins 3959612.
Engineered rau SANY SCT cranes thiab KAMAZ 6520 hnyav- cov tsheb thauj khoom.
6.92 nti (175.77 mm) ntev nrog kev sib khi rau siab -kev co ib puag ncig.
Cov lus piav qhia ntxaws ntxaws
Lub luag haujlwm tseem ceeb ntawm Fine Fuel Filtration
Lub tshuab lim roj yog cov khoom tshwj xeeb tsim los tshem tawm cov dej thiab cov khoom siv abrasive los ntawm cov roj ua ntej nws mus txog lub twj tso kua mis. Lub 40C6996 muab qhov tseem ceeb thib ob - theem pom, kom ntseeg tau tias niaj hnub siab -pressure common rail (HPCR) systems nyob twj ywm tsis pub muaj cov khib nyiab me me. Los ntawm kev tswj xyuas qhov kev ncaj ncees ntawm cov roj ntws, cov lim dej no tiv thaiv lub tshuab nozzle hnav thiab khaws cia lub cav combustion efficiency.
Kev daws qhov ua tsis tiav ntawm cov khoom ua ntej ua ntej
Cov roj paug tsis huv yog qhov ua rau lub zog poob thiab lub tshuab tsis ua haujlwm hauv cov tshuab hnyav xws li SANY cranes thiab Komatsu excavators. Lub 40C6996 hais txog qhov mob no los ntawm kev siv cov xov xwm cellulose siab heev uas muaj qhov sib npaug ntawm qhov muaj peev xwm txaus thiab kev tuav nruj heev. Qhov no ua kom ntseeg tau tias txawm tias nyob rau hauv qhov kev kub ntxhov siab ntawm Cummins 3959612 system, koj lub cav tau txais kev huv, khib nyiab- roj dawb.
Vim li cas thiaj xaiv peb cov kev lim dej lim?
Peb cov ntxaij lim dej tau tsim los txuas qhov sib txawv ntawm cov khoom OEM kim thiab cov khoom siv tsis zoo tom qab muag. 40C6996 muaj:
- Standardized Dimensional Accuracy:Haum rau 3.68 nti (93.47 mm) sab nraud txoj kab uas hla zoo kawg nkaus rau kev xau{2}}dawb haum.
- Txhim khu kev sealing:Nruab nrog lub siab - qib gasket nrog 2.83 nti (71.88 mm) OD los tiv thaiv thermal expansion thiab contraction.
- Hla -Kev lag luam Versatility:Engineered kom tau raws li cov kev cai ntawm ntau hom xws li Atlas Copco, Ford, thiab MAZ.
Engineered rau ntiaj teb no Machinery
Los ntawm cov chaw tsim kho ntawm SANY cov cuab yeej mus rau kev thauj mus los ntawm KAMAZ cov tsheb thauj khoom, 40C6996 yog tus qauv rau kev ua haujlwm ntev. Nws yog optimized rau 60510 thiab 6520 tsheb series, muab tib qhov kev ntseeg tau zoo li Donaldson P550774 ntawm tus nqi sib tw ntau dua.
Technical Specifications
| Parameter | Specification nthuav dav |
|---|---|
| Qauv nab npawb | 40C6996 |
| Tag Nrho Ntev | 6.92 nti / 175.77 hli |
| Hom Media | Siab -Kev ua tau zoo Cellulose |
| Qhov Loj Tshaj Tawm Sab Nraud (OD) | 3.68 nti / 93.47 hli |
| Gasket Outer Diameter | 2.83 nti / 71.88 hli |
| Gasket In Diameter | 2.46 nti / 62.48 hli |
| Kev ntsuas ntsuas | 6.50 micron (c) @ 98.7% |
| Daim ntawv thov tseem ceeb | Roj lim rau Hnyav Cav |
Cross Reference
Cummins: 3959612 | Donaldson: P550774 | Fleetguard:FF5488 |Komatsu: 6003193750 | Atlas Copco: 3 Lab tus kiv cua tos koj rau Webtalk! 1094217800 | HiFi Lim:SN 40763 |SF lim:SK 48957 |Ford:BG6X9155AA
Kev lag luam thov
SANY STC 250, SCT 500, thiab STC 700 T5.
KAMAZ 60510 thiab 6520 series tsheb.
MAZ 60511 (Minsk Automobile Plant).
Cov cuab yeej siv Komatsu 6003193750 lossis Cummins xyaw.
Zoo thiab Ntawv Pov Thawj
✅ 98.7% Kev Ua Haujlwm Zoo Tshaj:Lab- tau tshuaj xyuas kom ntxiab 6.5 micron hais, ua tau raws li cov qauv kev tiv thaiv roj nruj.
✅ Leak -Tested Sealing:Txhua chav tsev tau txheeb xyuas qhov tseeb ntawm lub rooj zaum gasket kom tsis txhob muaj cua nkag mus rau hauv cov roj.
✅ Consistent Flow:Kev tsim kho kom muaj kev tiv thaiv qis kom txaus thaum ua kom muaj peev xwm ua kom muaj kab mob.
FAQ
Q: Kuv yuav tsum hloov kuv lub 40C6996 roj lim ntau npaum li cas?
A: Rau cov tshuab hnyav xws li SANY cranes, peb xav kom hloov txhua 500 teev lossis raws li koj lub cav OEM lub sijhawm tu. Kev hloov pauv tsis tu ncua yog qhov tseem ceeb yog tias koj siv qis dua - cov khoom siv roj zoo.
Q: Puas yog 40C6996 tau tshaj Cummins 3959612?
A: Yog, 40C6996 yog ib qho kev hloov pauv ncaj qha rau Cummins 3959612, sib piv tag nrho cov qhov ntev ntawm qhov txuas thiab pom qhov ntsuas micron.
Q: Dab tsi yog qhov txiaj ntsig ntawm 6.5-micron pom?
A: Kev ntsuam xyuas 6.5-micron ua kom ntseeg tau tias cov khoom zoo heev, uas tuaj yeem ua rau cov rooj tog zaum thiab cov nozzles, raug kaw ua ntej lawv mus txog lub cav. Qhov no yog qhov tseem ceeb rau kev ua raws li Tier 3 thiab Tier 4 emission qauv.
Q: Kuv puas tuaj yeem siv cov lim dej no rau ntawm lub cav Komatsu?
A: Yog tias koj cov khoom siv Komatsu xav tau tus lej 6003193750, 40C6996 yog qhov hloov pauv tau.
Q: Dab tsi yog qhov gasket loj rau 40C6996?
A: Lub gasket muaj ib txoj kab uas hla ntawm 2.83 ntiv tes (71.88 hli) thiab ib txoj kab uas hla ntawm 2.46 ntiv tes (62.48 hli).
Hwm Wholesale & Ntiaj teb no Export Support
Tiered pricing rau fleets.
Lub sijhawm ua haujlwm ceev rau SANY / KAMAZ.
Private labeling txhawb (Yog).
